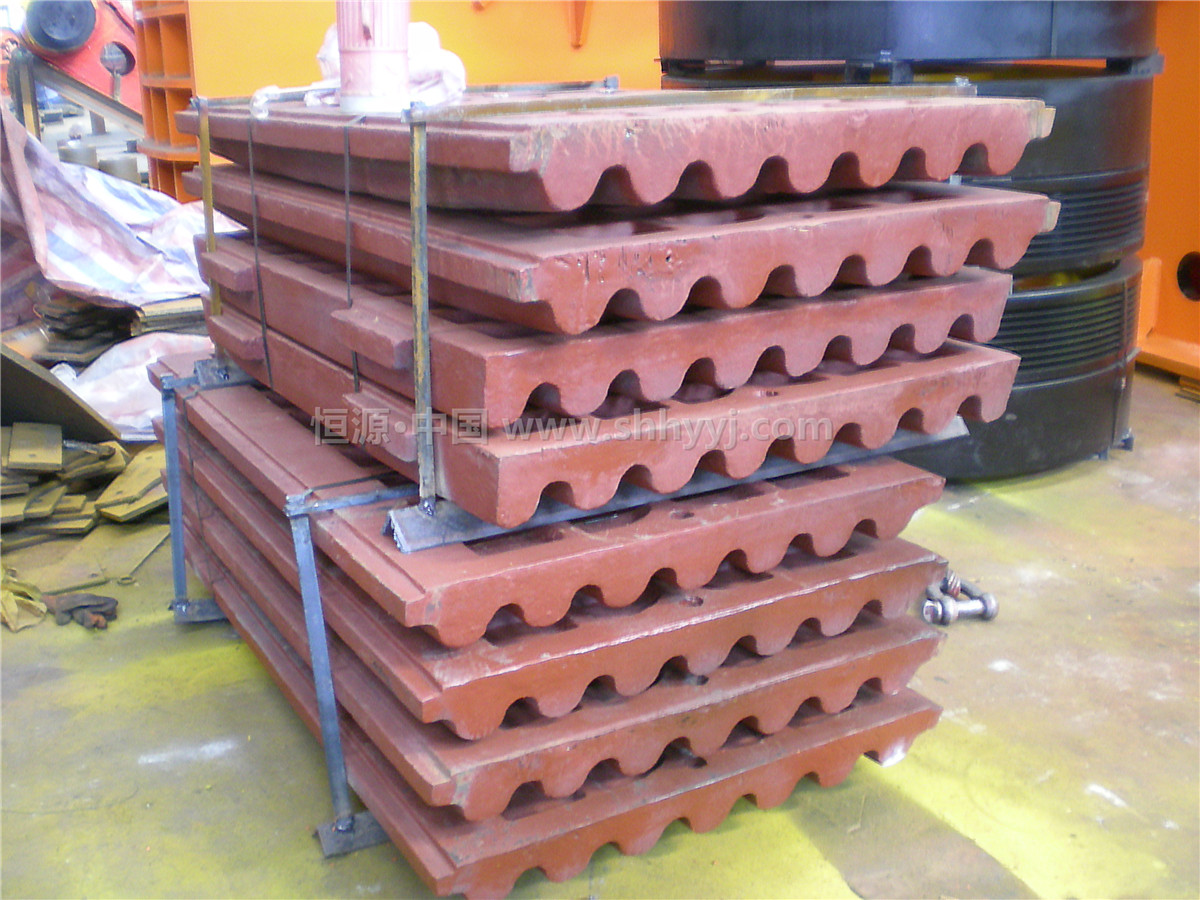

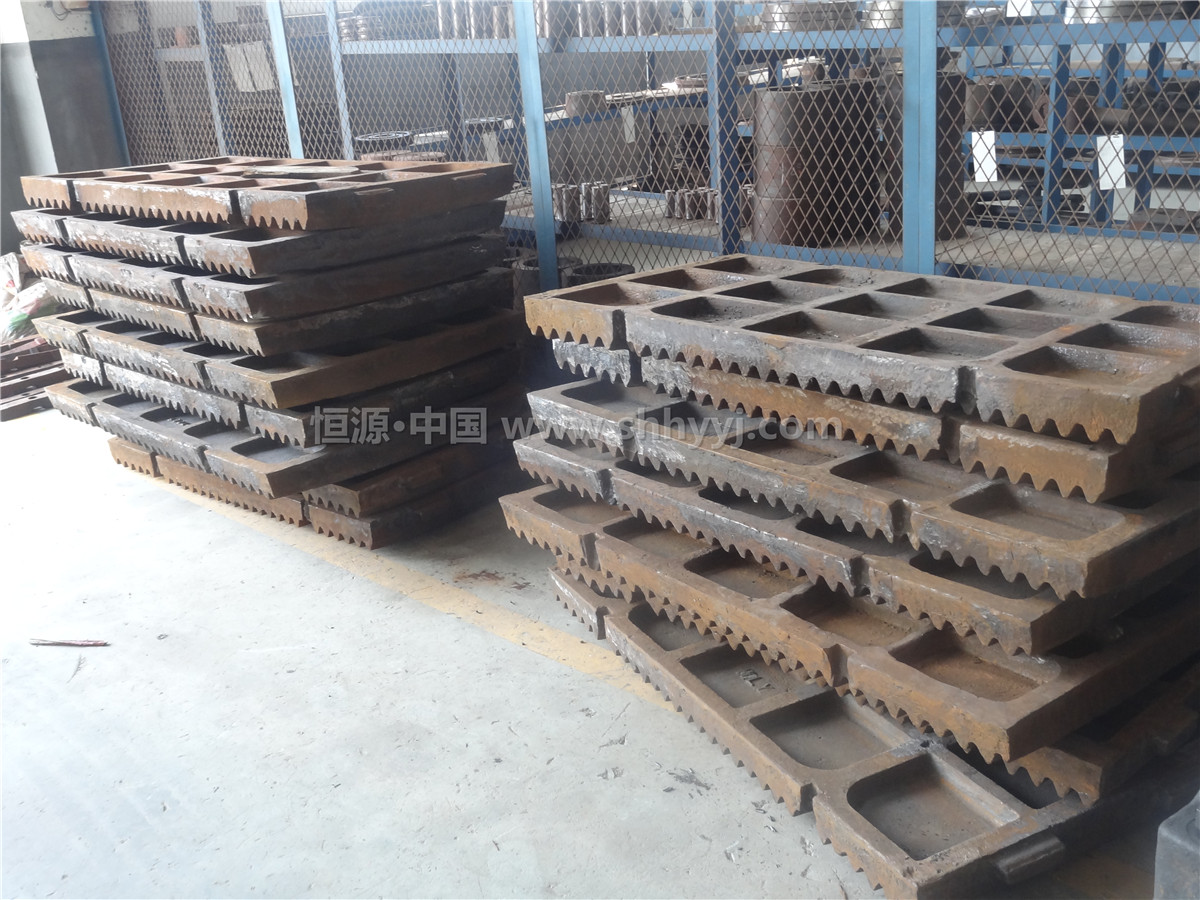

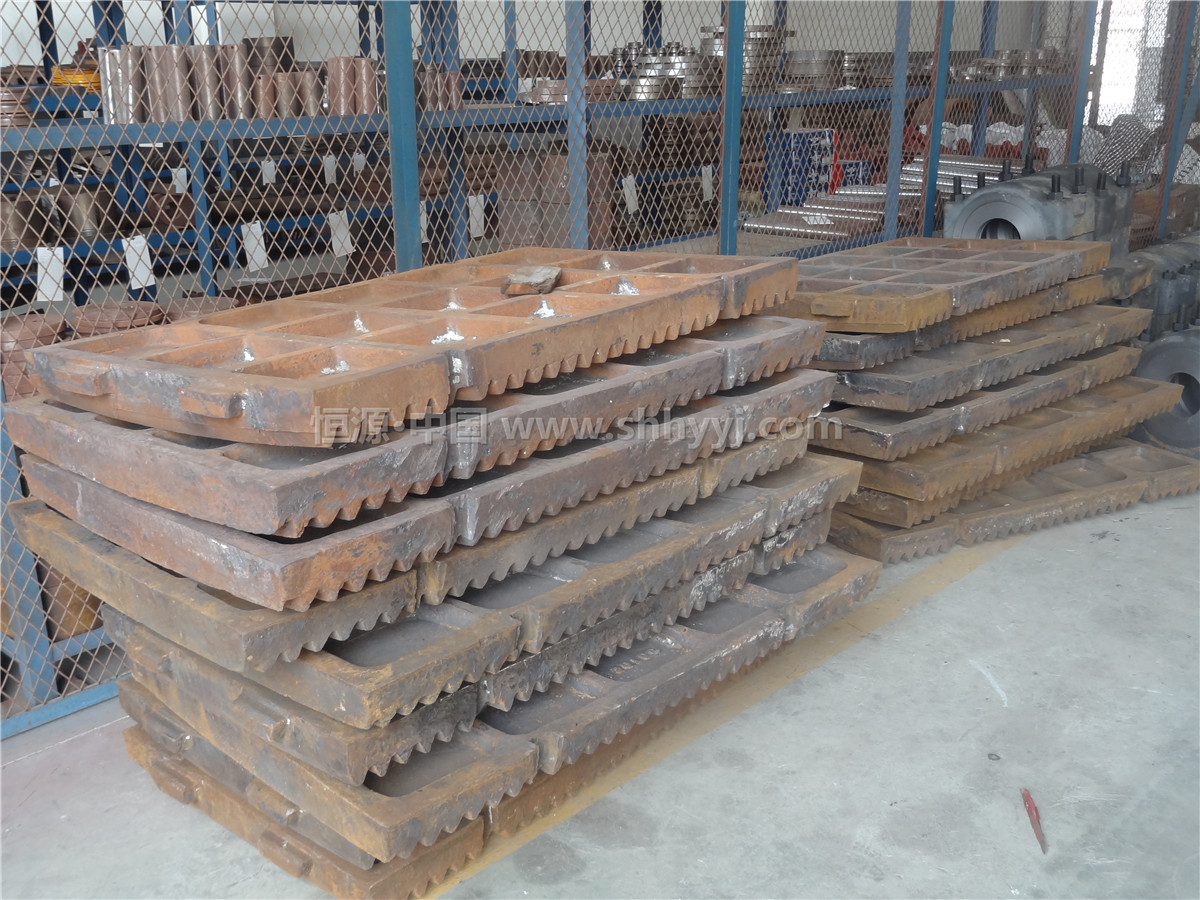

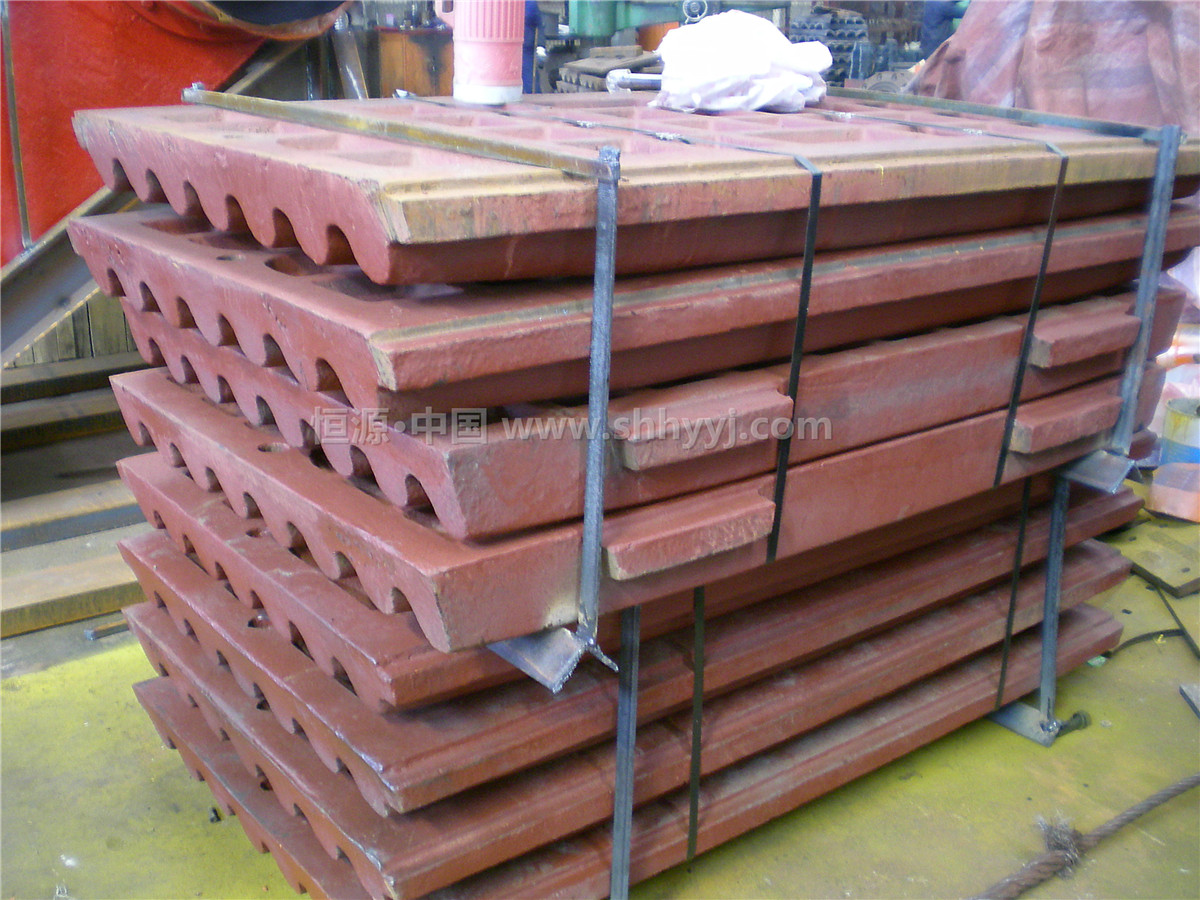

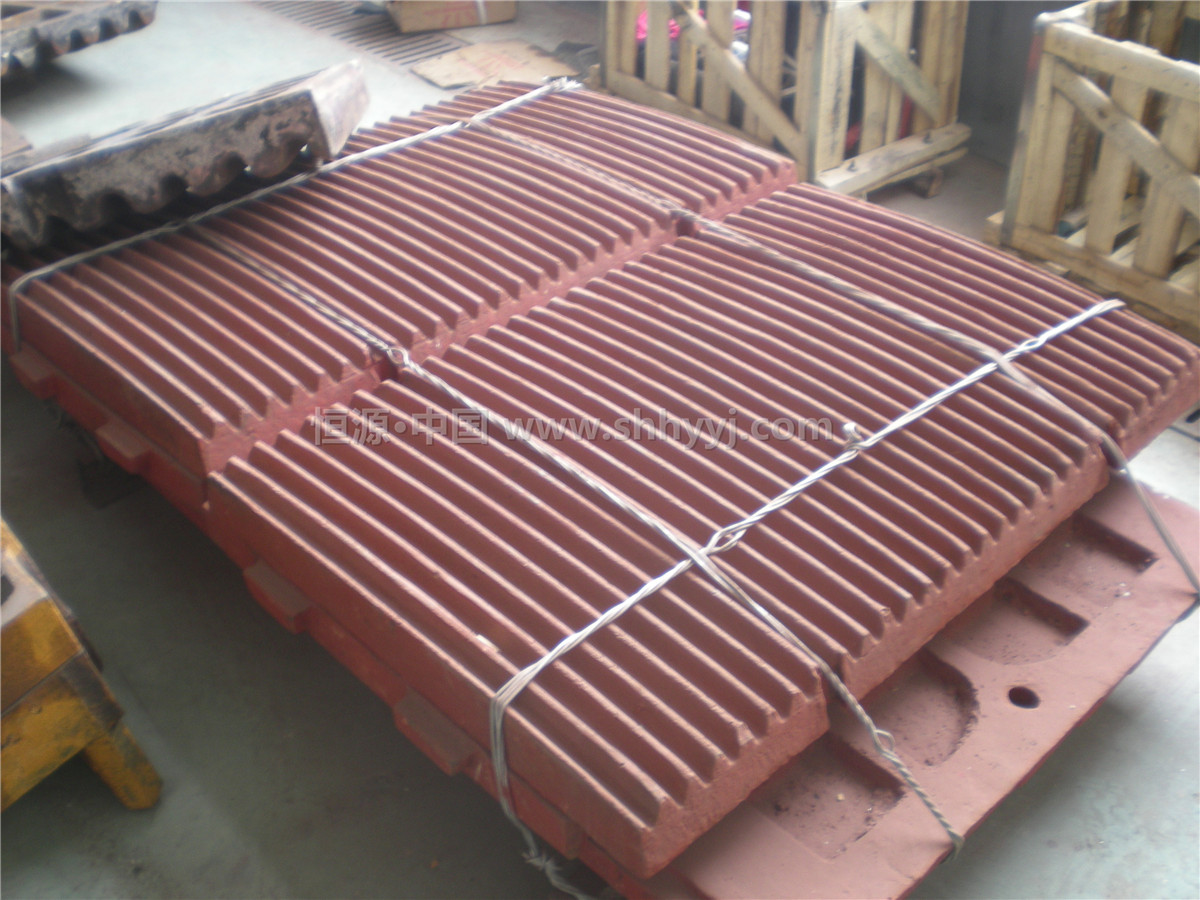

Introduction to the jaw crusher tooth plate:
Jaw crusher tooth plate is referred to as 颚 plate, commonly used alias: E-plate, 颚 plate (moving 颚 plate, static 颚 plate, moving jaw plate, static plate), dental plate, tooth plate, high manganese steel 颚 plate, high manganese Steel plate, super high manganese steel plate, super high manganese steel plate, composite alloy plate, composite alloy plate, wear plate, wear plate, jaw crusher, jaw crusher The slabs are divided into movable slabs and fixed slabs, which are one of the important components in the jaw crusher. The fascia is also called the tooth plate and is the key wear-resistant part in the jaw crusher. A set of slabs usually consists of two parts, namely the movable slab and the fixed slab. According to the type of the jaw crusher, the specifications of the tooth plate also change accordingly. The slab is generally made of high manganese steel.
High manganese steel is the traditional material of the jaw crusher jaw plate, which has good toughness and good deformation hardening ability. The material is made of Mn13, Mn13Cr2, Mn18Cr2 (ie ultra-high manganese) or special ingredients according to working conditions. Zhejiang Yida mechanical jaw crusher has fine workmanship and product innovation, and has absolute quality advantages compared with peer products. Because in the operation state of the jaw crusher, the movable jaw is attached to the movable jaw to make a continuous and non-intermittent compound pendulum movement, and the fixed jaw is formed at an angle to extrude the stone. Therefore, it is an accessory that is relatively easy to damage in the masher.
Jaw crusher tooth plate classification:
1, fixed seesaw
2, activity seesaw
Jaw Crusher Plate Specifications:
Existing PEX 100*600, 150*750, 250*750, 250*1000, 250*1200, 350*750, 300*1300, PE150*250, 250*400, 400*600, 500*750, 600*900 , 750 * 1060, 870 * 1060, 900 * 1200, 1000 * 1200, 1200 * 1500, 1500 * 1800 and other models, other seesaw can be customized according to the drawings.
main material:
High manganese steel (Mn13, Mn18), manganese chromium alloy (Mn13Cr2, Mn18Cr2), new composite materials, etc.
Production Process:
Water glass sand casting, 1000 cubic meters heat treatment pool, etc.
Applicable materials:
River pebble, granite, basalt, iron ore, limestone, quartz, diabase, iron ore, gold, copper, etc.
Application range:
Sand and gravel yard, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc.
Quality assurance：
Every step of casting production has strict control procedures. Before leaving the factory, it must pass the quality inspection of quality inspection department to ensure the quality of each manufactured product;
Cost-effective
The use of high manganese steel composite jaws doubles the production efficiency of the crusher, reduces the investment cost of casting wear, and reduces the downtime caused by frequent replacement of parts, greatly improving the return on investment;
Technical guarantee
With Hengyuan·China's crusher tooth plate, it can be configured according to customers' individual requirements. The product undergoes scientific and strict smelting, casting and heat treatment processes, in addition to greatly improving wear resistance, it can also improve the aesthetics of broken materials;
Wide range of applications
Widely used in metallurgy, chemical, building materials, electric power, transportation and other industrial sectors, used for coarse, medium and fine crushing of various ores and rocks.
Crusher parts offer is more complicated, so customers who need to buy jaw crusher accessories, please call Shanghai Hengyuan crusher sales hotline: +86-21-33781259 to get the latest offer, you can also choose the field inspection method, buy custom broken accessories to get more Good buying experience, thank you.
