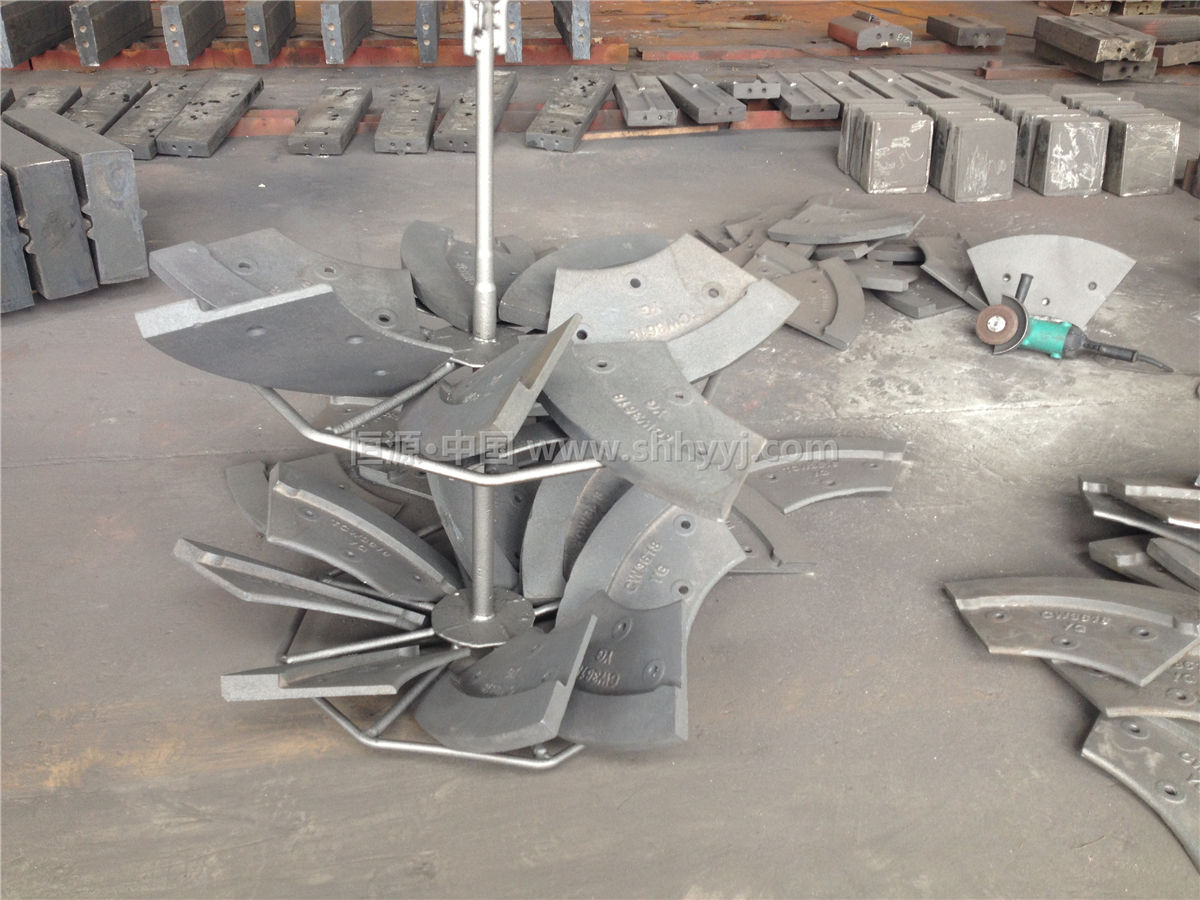

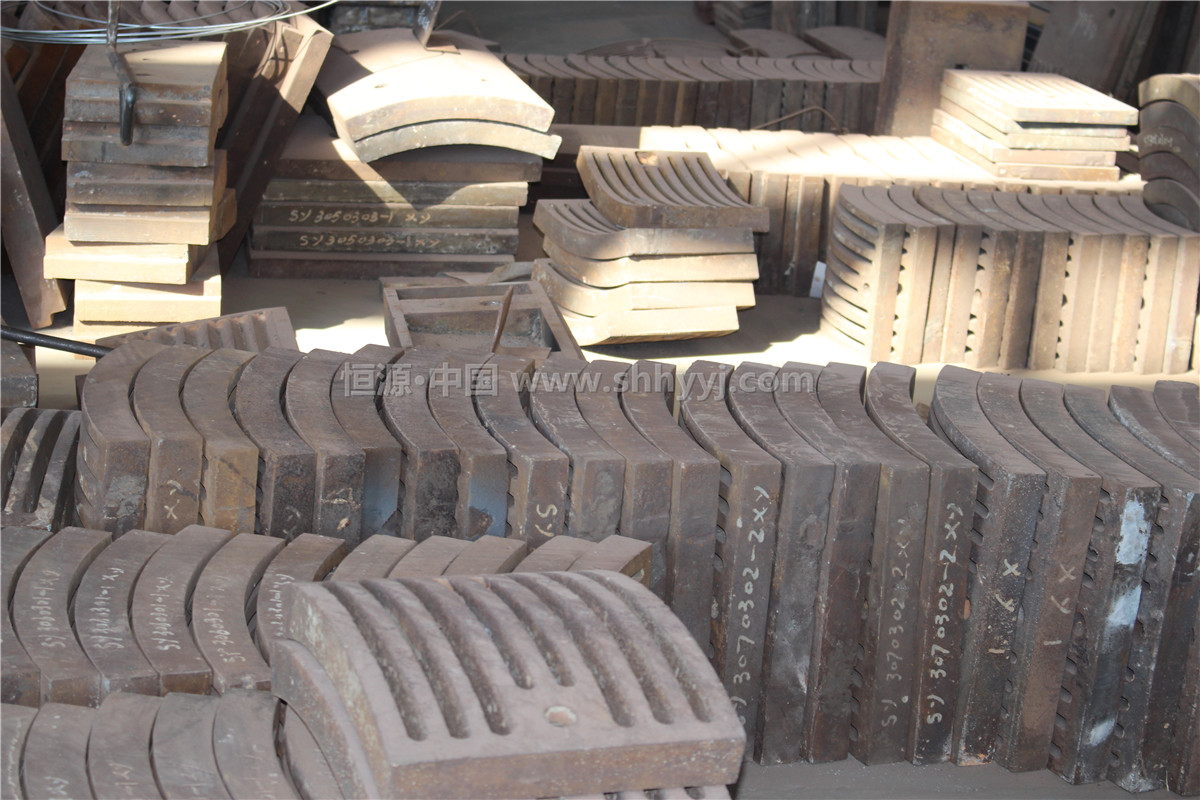

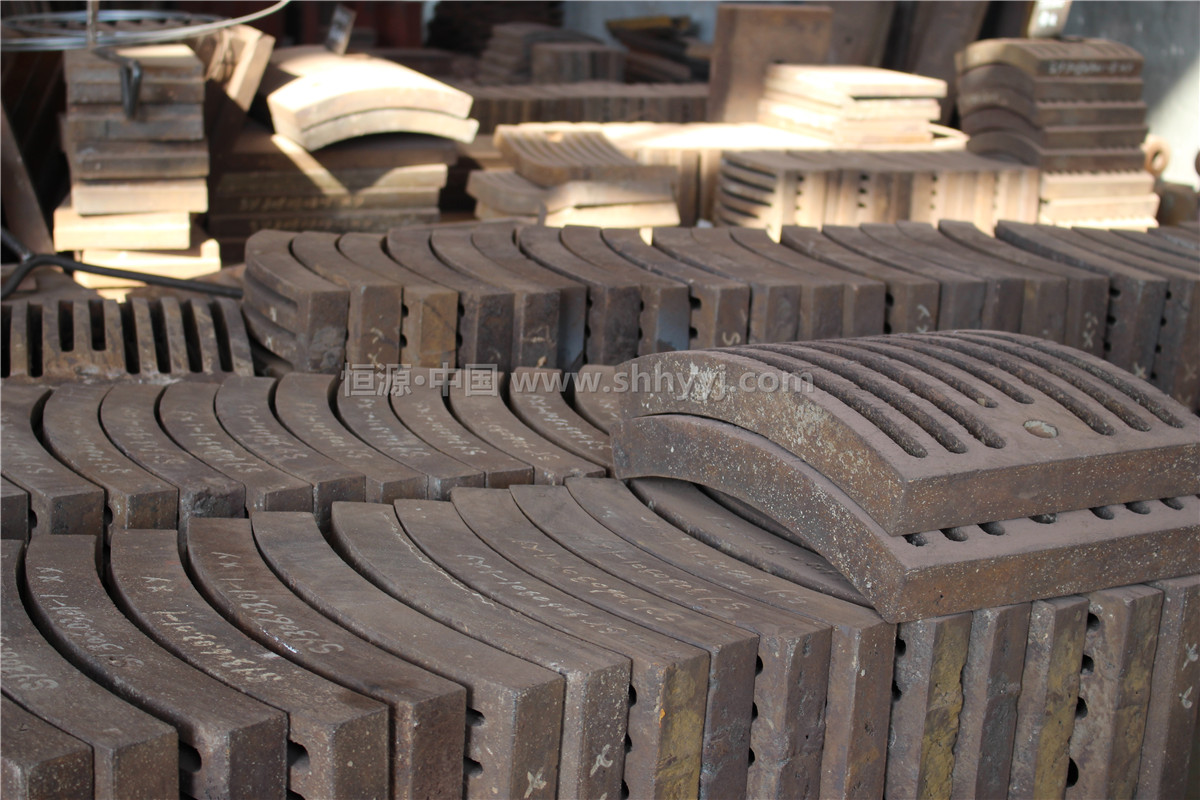

Product Name: High manganese steel wear parts
Commonly used aliases: lining, partition board, raft, purlin, sieve, screen
Main material: Mn13, Mn13Cr2
Casting process: lost foam casting
Applicable materials: granite, basalt, etc.
Applications: Smelting, building materials, roads, railways, water conservancy and chemicals
High manganese steel is a new material for the crusher. It has good toughness and good deformation hardening ability. The material is made of Mn13, Mn13Cr2, Mn18Cr2 (ie ultra-high manganese) or special ingredients according to working conditions. The crusher guard plate produced by Shanghai Hengyuan has fine workmanship, product innovation and cost-effective advantages.
High manganese steel is divided into five grades according to national standards. The main difference is the carbon content, which ranges from 0.75% to 1.45%. It is subject to high impact and low carbon content. The commonly used high-manganese steel grades and their applicable range are: ZGMn13-1 (C 1.10%~1.50%) for low impact parts, ZGMn13-2 (C1.00%~1.40%) for ordinary parts, ZGMn13-3 (C0.90% to 1.30%) for complex parts, ZGMn13-4 (C0.90%~1.20%) for high impact parts. The manganese content of the above four grades of steel is 11.0% to 14.0%. The manganese content is between 11.0% and 14.0%, and generally should not be lower than 13%. Ultra-high manganese steel has no national standard, but the manganese content should be greater than 18%. The level of silicon is high, and chromium is used to improve wear resistance, generally around 2.0%. It is often used to make the shovel tooth of the excavator, the rolling wall and the crushing wall of the cone crusher, the jaw crusher jaw plate, the ball mill liner, the plate hammer, the hammer head, and the like.
The incoming material is determined by the chemical composition. The main charge is high quality carbon steel (or steel ingot), high carbon ferromanganese, medium carbon ferromanganese, high carbon ferrochrome and high manganese steel. High manganese steel has excellent anti-wear performance under the condition of strong impact abrasive wear, so it is often used in mining, building materials, thermal power and other mechanical equipment to make wear parts. Under low-impact conditions, the high-manganese steel cannot exhibit the characteristics of the material because the work hardening effect is not obvious.
Non-magnetic is the most prominent feature of high manganese steel, and it is also the best distinguishing property. Often used in the motor industry to make guard rings. The density of this type of steel is 7.87 to 7.98 g/cm3. Due to the high carbon and manganese content, the thermal conductivity of steel is poor. The thermal conductivity is 12.979 W / (m • ° C), which is about 1/3 of carbon steel. Since steel is austenitic and non-magnetic, its magnetic permeability μ is 1.003 to 1.03 (H/m), and some conditions requiring non-magnetic conditions can be selected.
Quality assurance
Every step of casting production has strict control procedures. Before leaving the factory, it must pass the quality inspection of quality inspection department to ensure the quality of each manufactured product;
Cost-effective
The crushing machine wear parts produced by our company can double the production efficiency of the crusher, reduce the investment cost of casting wear, and reduce the loss of work stoppage caused by frequent replacement of parts, greatly improving the return on investment;
Technical guarantee
With Hengyuan·China's high-manganese steel wear parts, it can be configured according to customers' individual requirements. The products undergo scientific and strict smelting, casting and heat treatment processes, in addition to greatly improving wear resistance, it can also improve the aesthetics of broken materials. ;
Wide range of applications
Widely used in metallurgical, chemical, building materials, electric power, transportation and other industrial sectors, used in the crushing and fine crushing of various ores and rocks.
The price of high manganese steel wear parts is more complicated, so customers who need to buy high manganese steel wear parts, please call Shanghai Hengyuan crusher sales hotline: +86-21-33781259 to get the latest offer, you can also choose the field inspection method, buy custom gravel Machine wear parts to get a better buying experience, thank you.
