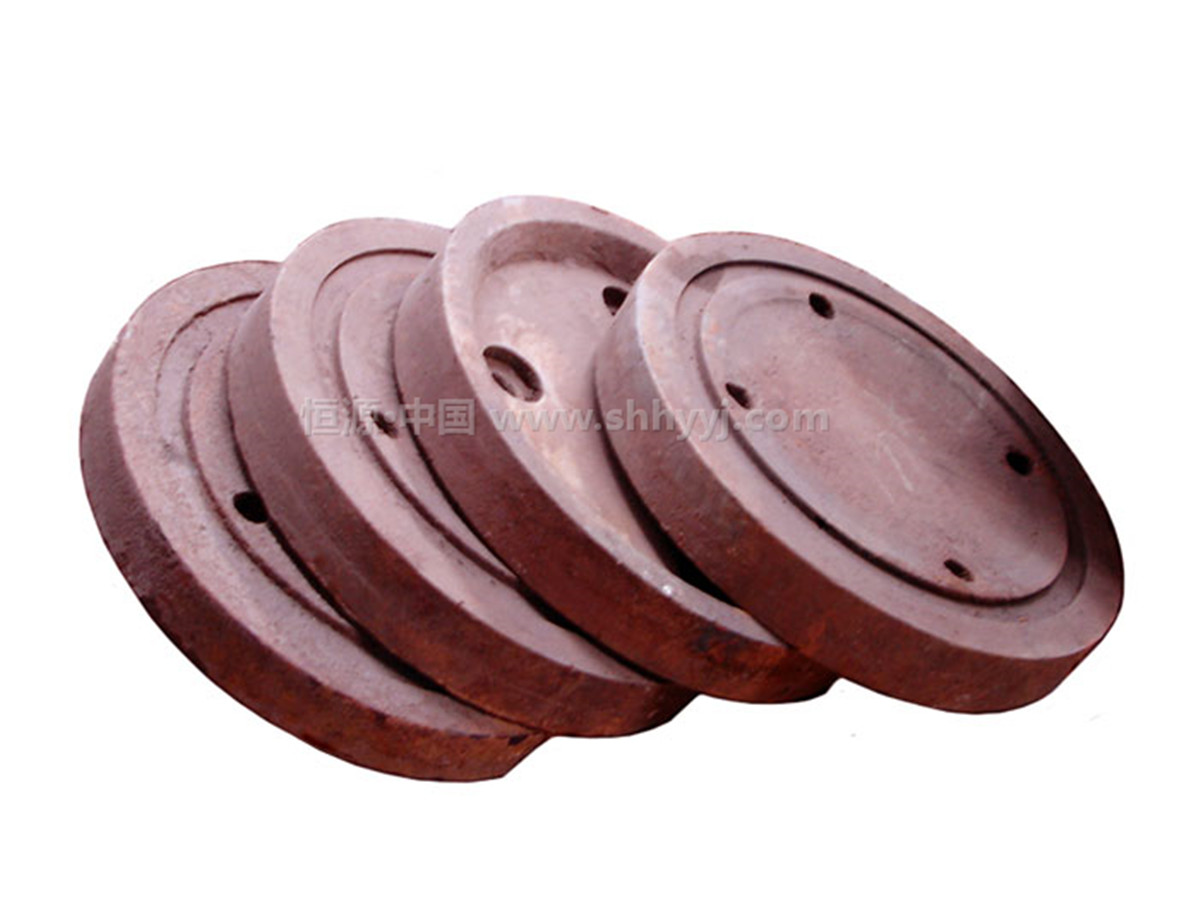

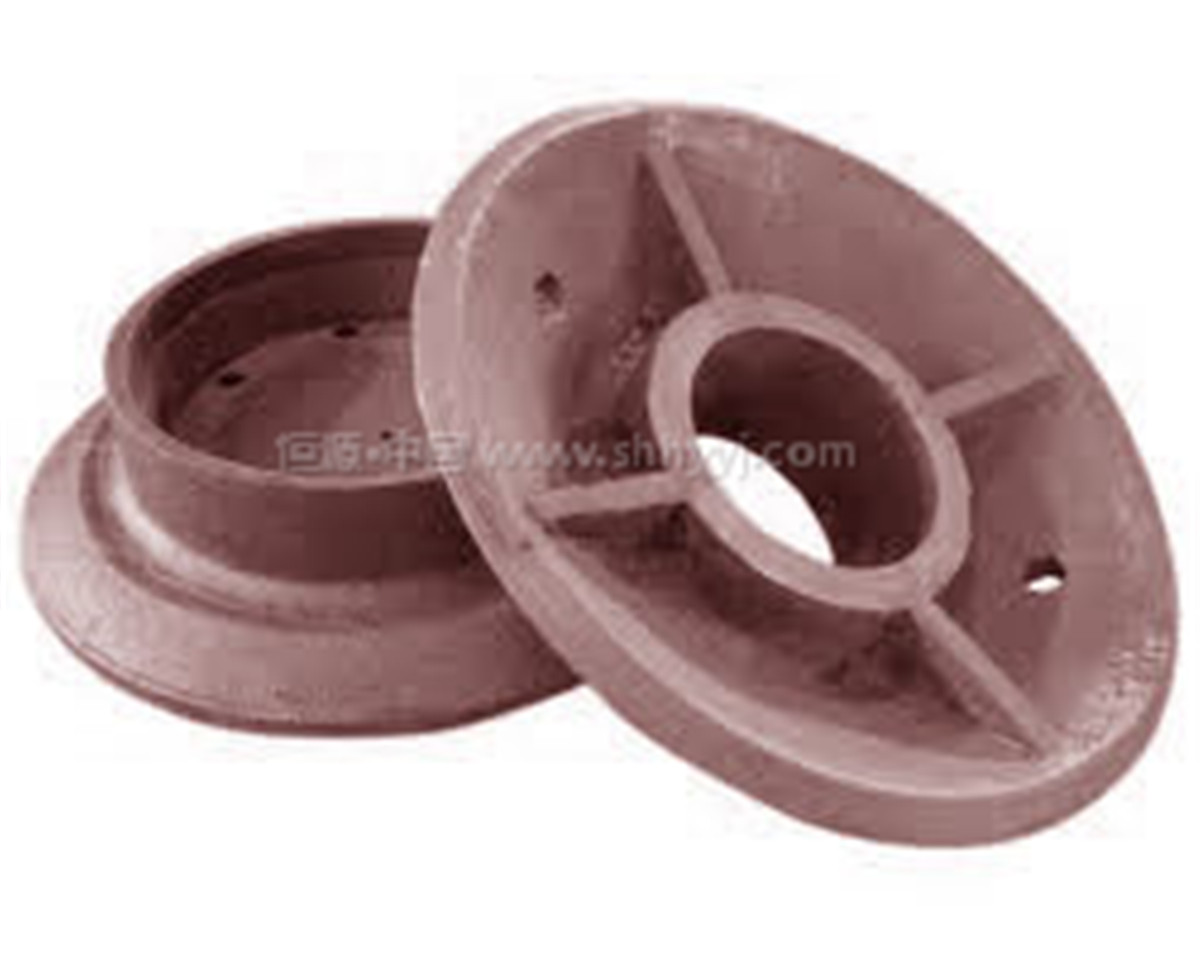

Product Name: Conical Distribution Plate
Product category: crusher parts, cone broken parts, cone distribution tray
Main materials: Mn-Cr alloy (Mn13Cr2, Mn18Cr2), new composite materials, new composite materials, modified high manganese steel, new high manganese steel, ultra high manganese steel, super high manganese steel, metamorphic high manganese steel
Production process: water glass sand casting, 1000 cubic meters heat treatment pool, etc.
Applicable materials: river pebble, granite, basalt, iron ore, limestone, quartz, diabase, iron ore, gold, copper, etc.
product description:
When the ore dressing is broken, the cone is broken. The ore which is mainly composed of the original lump ore falls directly from the blanking and falls on the distributor plate of the cone crusher. The ore plate is very worn, and it needs to be exchanged in about 3 months. If the new distributor tray is not exchanged in real time, the 8 M30 bolts of the solid distribution tray will be cut off by the ore, and the distributor tray will fall off, which will inevitably cause the cone motor cone and the fixed cone card to be invalid. As a result of damage to the motor, the stone production line will stop and affect the normal production of the gravel production line.
Maintenance method:
The ring of outer diameter φ300 is welded with 16 round steel, and the welded ring is superimposed and overlapped and welded on the distribution tray of the cone crusher, and the space surrounded by the distribution tray and the ring is produced in the production. Filled with crushed ore, buffering the impact on the distribution tray, greatly extending the life of the distribution tray.
Quality assurance
Each step of the production of conical distributor discs has strict control procedures, and must pass the quality inspection of quality inspection department before leaving the factory to ensure the quality of each manufactured product;
Cost-effective
The conical distributor disc produced by our company can increase the production efficiency of the crusher, reduce the investment cost of casting wear, and reduce the loss of work stoppage caused by frequent replacement of parts, greatly improving the return on investment;
Technical guarantee
With Hengyuan·China's conical distributor tray, it can be configured according to customers' individual requirements. The products undergo scientific and strict smelting, casting and heat treatment processes, in addition to greatly improving wear resistance, it can also improve the granular shape of broken materials;
Wide range of applications
Widely used in metallurgy, chemical, building materials, electric power, transportation and other industrial sectors, used for coarse, medium and fine crushing of various ores and rocks.
The price of the conical distributor disc is determined according to the type of the cone. Therefore, customers who need to purchase the sub-distribution tray, rolling wall and broken wall accessories, please call the Shanghai Hengyuan Crusher Sales Hotline: +86-21-33781259 to get the latest offer, also You can choose a field trip to buy custom cone-breaking accessories for a better buying experience, thank you.
